Mermaid Runtime

The Mermaid Runtime settings page picks the bundled Mermaid.js version and the theme, look, and font that diagrams get when they set none. It also decides how exports and AI-generated diagrams pick their appearance, and holds per-context YAML overrides for any other Mermaid.js configuration. Open it at Settings > Tools > Mermaid Studio > Mermaid Runtime ( Command + Comma Command, Control + Alt + S CtrlAltS ).

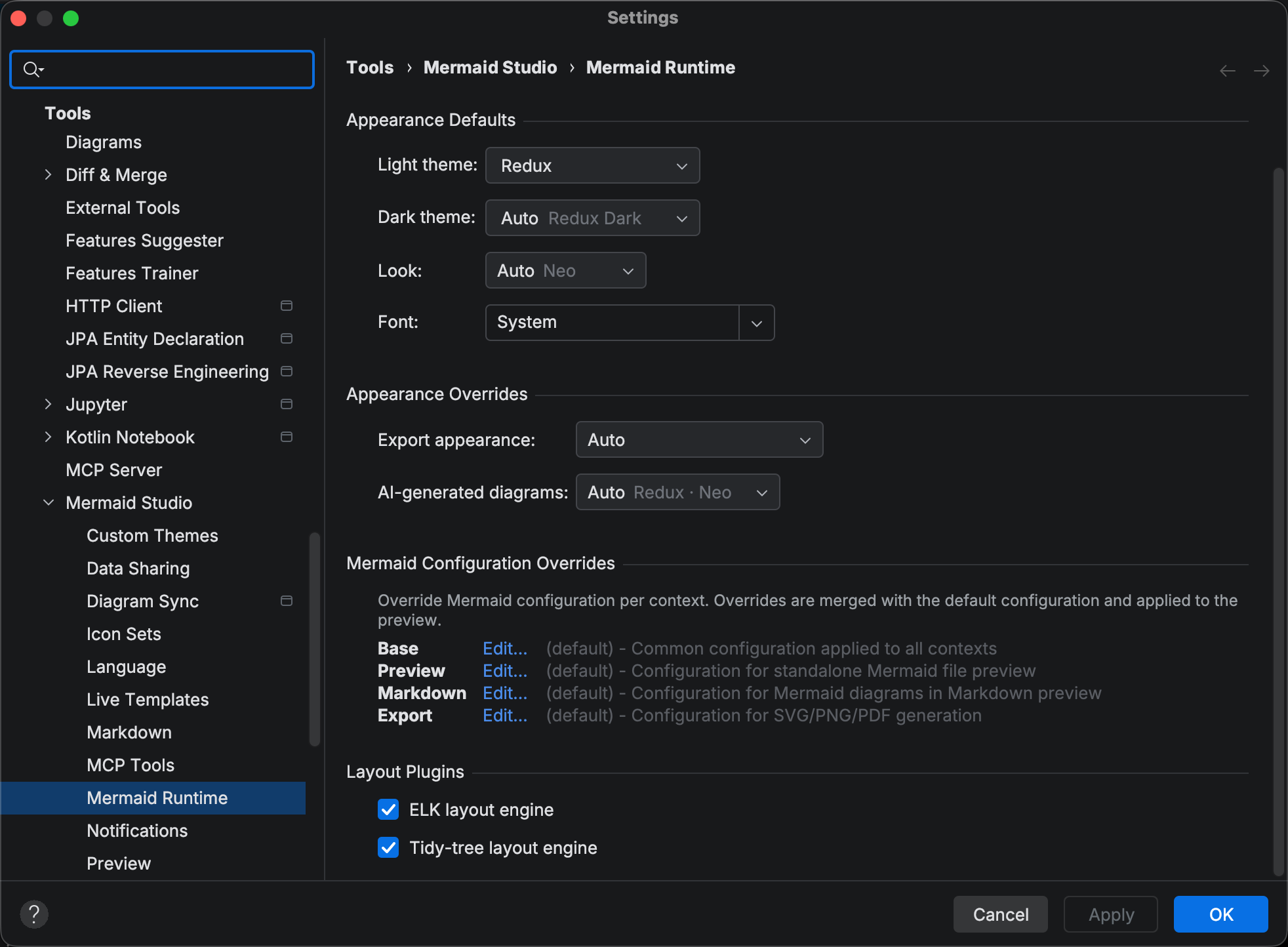

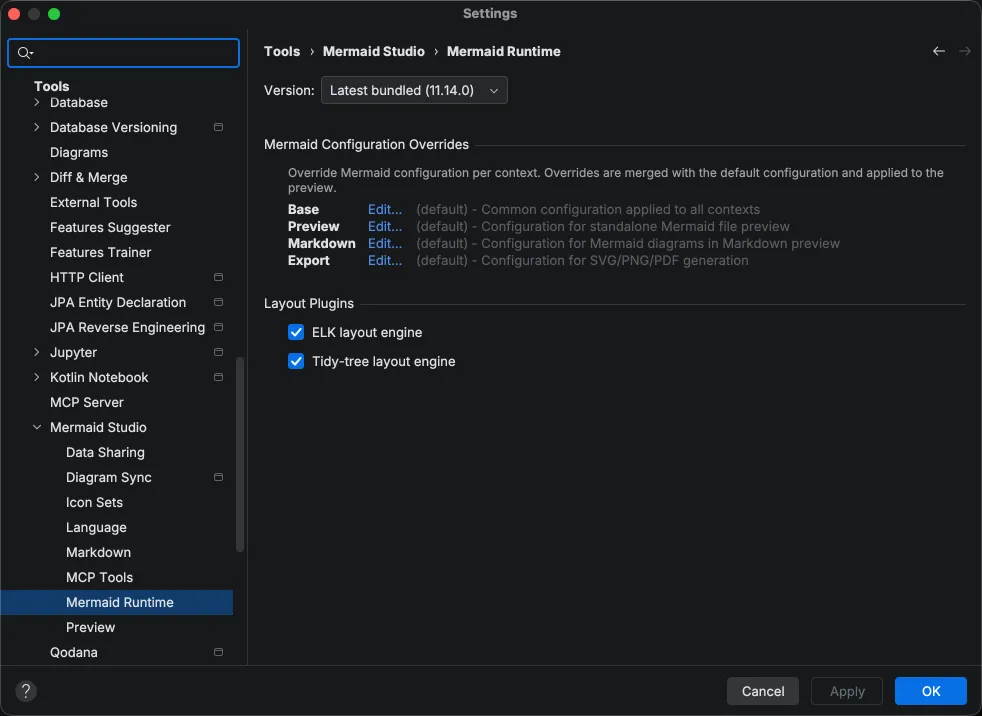

The page is laid out top to bottom as Version, Appearance Defaults, Appearance Overrides, Mermaid Configuration Overrides, and Layout Plugins, and the sections below follow the same order. The capture below shows the page from the Appearance Defaults group down.

Mermaid.js Version

Mermaid Studio bundles several Mermaid.js versions and renders every diagram with the one selected in the Version dropdown at the top of the page. The default entry, Latest bundled, tracks the newest bundled version. Pick a specific version to pin rendering to it.

Switching the version reparses open .mmd files, so version-gated highlighting and inspections update without closing and reopening the file. The version also gates the Neo and Redux themes and the neo look (Mermaid.js 11.14.0 or later), so the greyed hints in the appearance dropdowns below change as you switch it.

Bundled Versions

The bundled Mermaid.js versions are:

• 11.17.2 (default)
• 11.16.1
• 11.15.0
• 11.14.0
• 11.13.0

Removed Versions

Mermaid.js Version	Removed In
11.12.3	2026.2.4
11.16.0	2026.3.6

Each new bundled minor version drops the oldest one, and a patch release replaces the older patch of the same minor. That keeps the plugin download bounded and lets old version-specific code go.

Version Compatibility Hints

When a diagram type is not supported by the active Mermaid.js version, a banner appears at the top of the editor naming the version it requires, as in the capture below.

Version-related syntax errors also mention the version mismatch in the error message.

Appearance defaults

Beyond the per-context override YAML, Mermaid Studio applies a set of adaptive appearance defaults that pick the theme, look, and font for diagrams that do not set their own. Out of the box these render with the Redux theme in light mode and Redux Dark in dark mode, and the choice follows the effective light or dark mode automatically.

The Appearance Defaults group has four dropdowns:

• Light theme — the theme used when a diagram resolves to light mode (default Redux). The dropdown lists every theme under Light Themes and Dark Themes separators, light group first.
• Dark theme — the theme used when a diagram resolves to dark mode (Auto by default). Auto derives the dark pairing of the chosen light theme and shows it as a greyed hint, so with Redux selected above it reads Redux Dark. This list puts Dark Themes first.
• Look — the default rendering style. Auto resolves to Neo for the Neo and Redux families and Classic otherwise, and the hint shows which.
• Font — the default diagram font: Auto, a web-safe preset (System, Verdana, Georgia, or Monospace), or any installed or custom font family.

These defaults apply wherever diagrams render: the live preview, Markdown preview, export, print, and AI-generated output. They rank below the override YAML and per-diagram frontmatter, so any theme, look, or font set in those still wins. Applying a custom theme writes it into the diagram’s frontmatter, so it takes precedence over these defaults like any other frontmatter theme. The Redux and Neo themes require Mermaid.js 11.14.0 or later. When a chosen value cannot render on a given diagram type or pinned Mermaid.js version, it steps down silently to the nearest supported theme.

Appearance overrides

Exports and AI-generated diagrams have no live preview to follow, so the Appearance Overrides group decides which of the defaults above they bake in.

Export appearance

Export appearance governs the light or dark variant that export, print, and copy-to-clipboard bake into the artifact. The theme family, look, and font always come from the appearance defaults. This setting only chooses light or dark.

• Auto (default) — bake the variant the preview you export from is showing. A standalone .mmd preview, or its pop-out window, follows the IDE theme under an Auto preview background and the forced canvas under White or Black. A Mermaid code fence in Markdown follows the IDE theme, because Markdown previews ignore the standalone preview background.
• Light — always bake the light default.
• Dark — always bake the dark default.

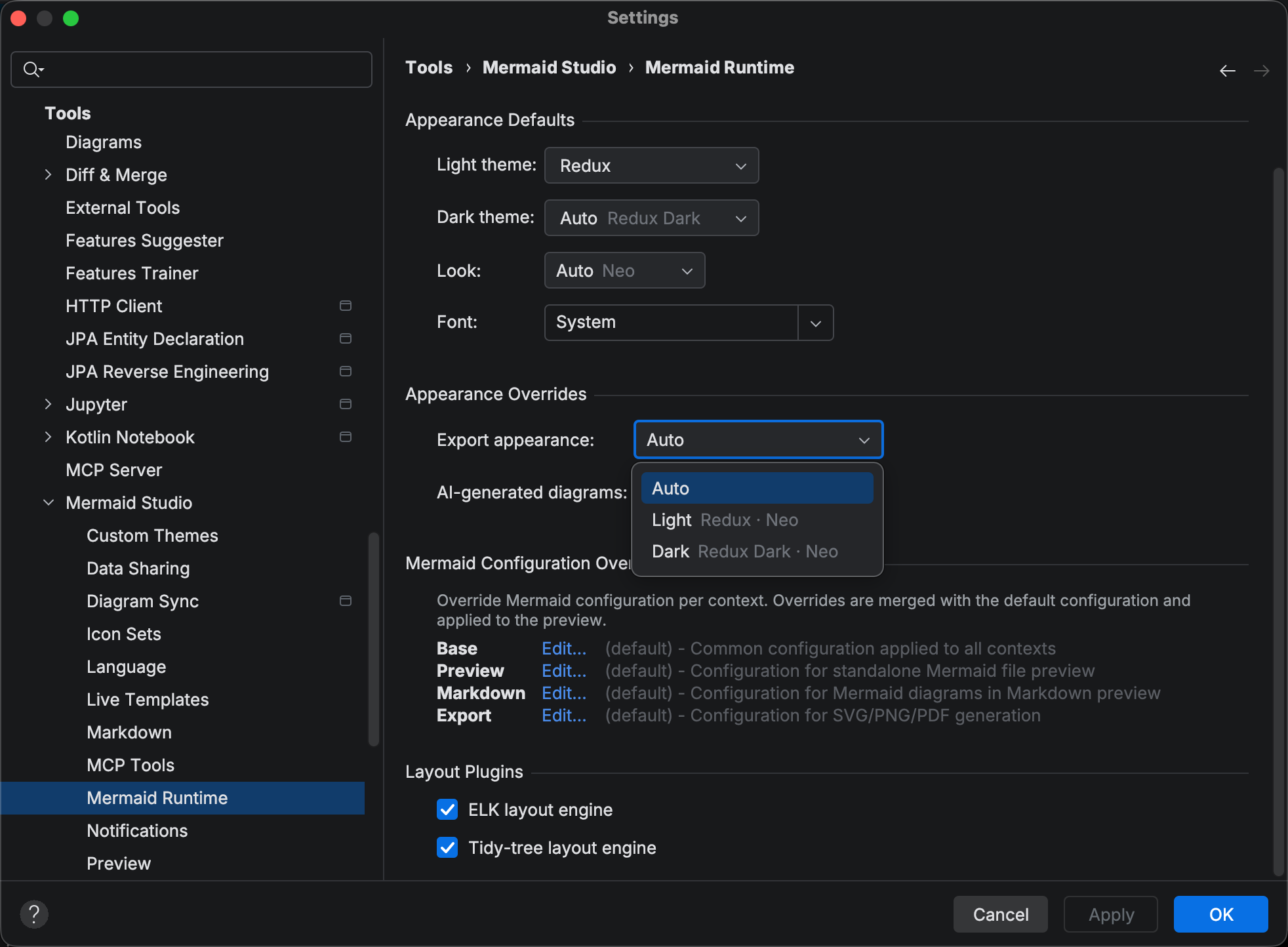

The Light and Dark entries show a greyed hint of the theme and look they resolve to, for example Redux Dark · Neo. The hint updates as you change the defaults above. Per-diagram frontmatter still wins over any of these, so a diagram with its own theme: exports with that theme. See the export page for how this interacts with the export dialog.

AI-generated diagrams

AI-generated diagrams sets the base appearance for diagrams rendered by the MCP tools. Generated diagrams have no preview to match, so this setting picks a theme rather than a light or dark variant. Every preset renders light. An agent can still set its own theme in a diagram’s frontmatter.

• Auto (default) — the configured light theme, look, and font, so generated diagrams match your own. The entry shows a greyed hint of the current result.
• Default classic — the Mermaid.js default theme with the classic look, which renders the same in any Mermaid renderer.
• Default neo — the Mermaid.js default theme with the neo look; falls back to classic when the active Mermaid.js version predates 11.14.0.

Configuration Contexts

Mermaid Studio supports four configuration contexts:

Context	Description
Base	Common configuration applied to all contexts
Preview	Configuration for standalone .mmd file preview
Markdown	Configuration for Mermaid diagrams in Markdown preview
Export	Configuration for SVG, PNG, and PDF generation

Configuration Merge Order

When rendering a diagram, configuration is shallow-merged in the order shown below.

Each layer overrides values from the previous layer. For example, if Base sets theme: dark and the Preview context sets theme: forest, previews will use the forest theme while other contexts use dark. The appearance defaults described above fill in theme, look, and font only when no layer sets them.

Editing Configuration

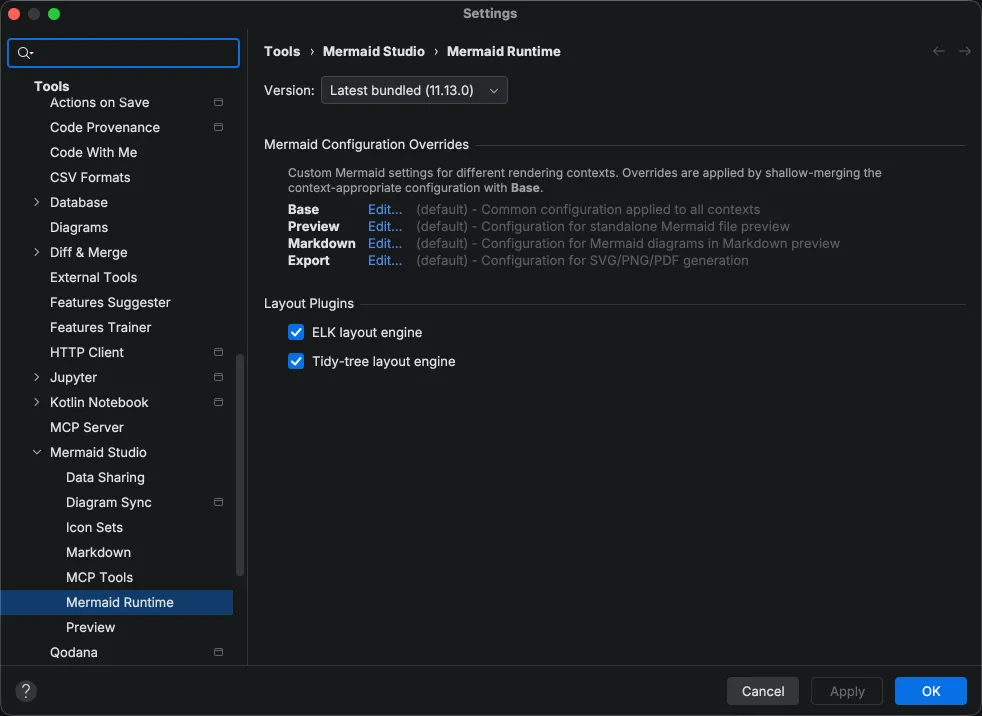

The Mermaid Configuration Overrides group lists the four contexts, each with an Edit… link, a Reset link, and a status of (default) or (configured). The steps below walk through editing one.

1. Open Settings ( Command + Comma Command, Control + Alt + S CtrlAltS ) and navigate to Tools > Mermaid Studio > Mermaid Runtime.

2. Click Edit… next to the context you want to configure.

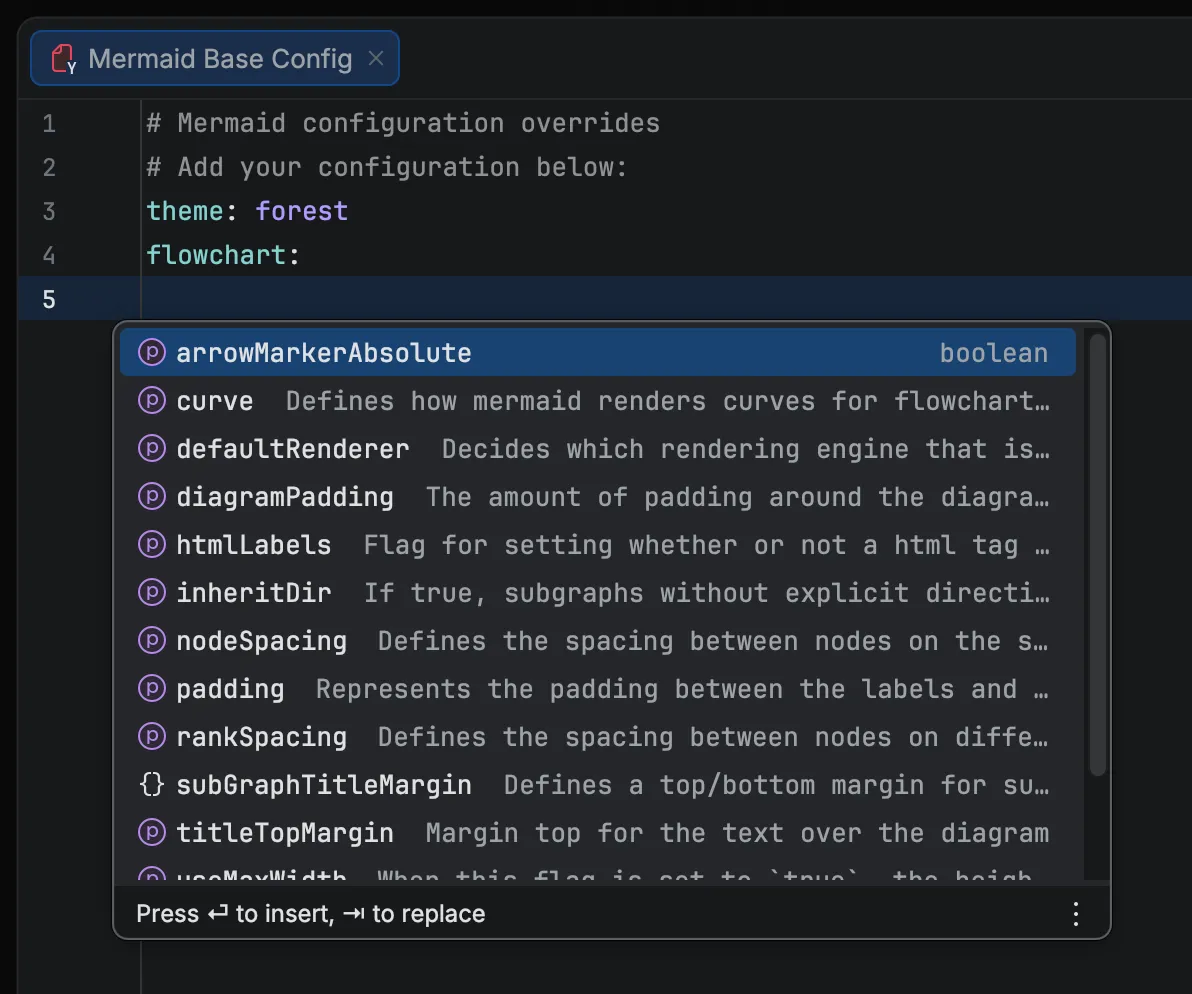

3. Edit the YAML configuration in the editor tab that opens, shown below with completion active.



   The editor provides JSON schema-based validation and code completion for all available Mermaid.js configuration options, including in Remote Development. See the Mermaid.js configuration docs for the complete list of options.

4. Save ( Command + S CommandS Control + S CtrlS ) or close the tab to apply changes; open previews update immediately.

If the YAML has errors when you save, the plugin applies nothing, keeps the draft in the editor, and shows a notification.

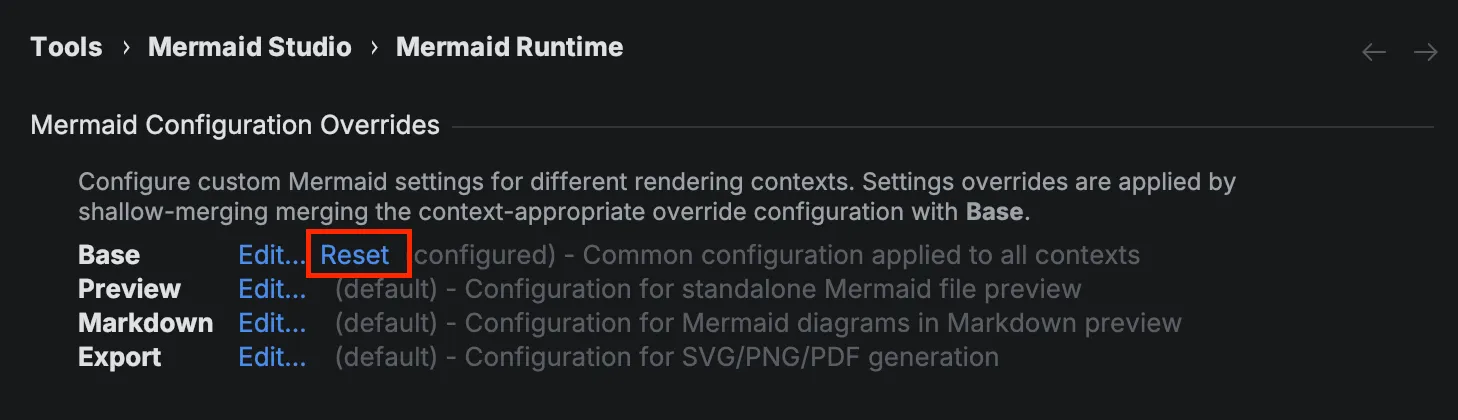

To reset a context to defaults, click Reset next to it, as shown below. An open editor tab for that context refreshes to the reset state.

Configuration Options

The table below lists common configuration keys. The editor provides code completion for all available options, and the full reference is in the Mermaid.js configuration docs.

Key	Values	Description
theme	default, dark, forest, neutral, base, neo, neo-dark, redux, redux-dark, redux-color, redux-dark-color	Diagram color theme (see Theme and Look compatibility)
look	classic, handDrawn, neo	Rendering style (see Theme and Look compatibility)
layout	dagre, elk, tidy-tree	Layout algorithm (see Layout Plugins)
fontFamily	Any CSS font stack	Font used in diagrams

You can also configure options for specific diagram types using nested keys like flowchart.curve or sequence.mirrorActors.

Theme

Setting theme in an override pins every diagram in that context to one stock theme, as in the YAML and rendered example below.

theme: neutral

Hand-Drawn Look

The look key switches the rendering style; the example below pairs the hand-drawn look with the neutral theme and a display font.

look: handDrawn
theme: neutral
fontFamily: "fantasy"

Setting handDrawnSeed ensures consistent rendering across previews.

Theme and Look compatibility

The base themes (default, dark, forest, neutral, base) and the classic look apply to every diagram type. All other theme and look values depend on explicit upstream styling in Mermaid.js, and are only applied to the diagram types where that styling exists. Mermaid Studio’s Appearance menu filters its options to match, so you will only see values that actually render with distinct styling on the current diagram.

Setting an unsupported value on a diagram type still renders; the diagram simply falls back to its standard colors or rendering style. The Neo and Redux themes and the neo look require Mermaid.js 11.14.0 or later.

The two tabs below list the diagram-specific theme and look values and the diagram types that receive custom styling for each. Use the Themes tab to see which diagrams the Neo and Redux color palettes apply to, and the Looks tab to see which diagrams support the handDrawn and neo rendering styles.

Themes

The Neo and Redux theme families are new in Mermaid.js 11.14.0, adding six color palettes on top of the five base themes. The matrix below lists the diagram types that upstream Mermaid.js styles for each value.

Diagram	neo	neo-dark	redux	redux-dark	redux-color	redux-dark-color
Flowchart	✓	✓	✓	✓	✓	✓
Sequence	✓	✓	✓	✓	✓	✓
Class	✓	✓	✓	✓	✓	✓
State	✓	✓	✓	✓	✓	✓
ER	✓	✓	✓	✓	✓	✓
Git Graph	✓	✓	✓	✓	✓	✓
Mindmap	✓	✓	✓	✓	✓	✓
Timeline	✓	✓	✓	✓	✓	✓
Requirement	✓	✓	✓	✓	✓	✓

Diagram types not listed support only the base themes (default, dark, forest, neutral, base).

Looks

The look value controls the overall rendering style. classic is the default clean-line style and applies to every diagram type. Hand Drawn produces a sketchy, rough-edged look (paired well with the neutral theme), and Neo, new in Mermaid.js 11.14.0, adds drop shadows and softer shape padding. The table below shows which diagram types upstream Mermaid.js styles for each non-default look.

Diagram	neo	handDrawn
Flowchart	✓	✓
Sequence	✓
Class	✓	✓
State	✓	✓
ER	✓	✓
Git Graph	✓
Mindmap	✓	✓
Timeline	✓
Requirement	✓	✓
Ishikawa		✓
Venn		✓

Diagram types not listed support only the classic look.

A theme and look are commonly set together, as in the override below.

theme: neo-dark
look: neo

Diagram-Specific Options

Nest options under the diagram type key to target a specific diagram, as in the example below.

flowchart:
  curve: step

Layout Plugins

Mermaid Studio includes optional layout plugins that provide advanced layout algorithms. Enable them in the Layout Plugins group at the bottom of the Mermaid Runtime settings, then reference them with layout: in your configuration or frontmatter.

ELK Layout Engine

ELK (Eclipse Layout Kernel) provides layered, force-directed, and tree layouts for flowcharts.

1. Check ELK layout engine in the Mermaid Runtime settings
2. Set layout: elk in your configuration or frontmatter

Tidy-Tree Layout

Tidy-tree provides optimized tree layout for hierarchical diagrams. Currently supported only in mindmap diagrams.

1. Check Tidy-tree layout engine in the Mermaid Runtime settings
2. Set layout: tidy-tree in your configuration or frontmatter

Layout plugins may increase preview loading time and memory usage.

Per-Diagram Configuration

You can also configure individual diagrams using YAML frontmatter, which takes precedence over runtime configuration overrides, as in the example below.

---
config:
  flowchart:
    curve: cardinal
---
flowchart LR
  A[Start] --> B{Decision}
  B -->|Yes| C[Action]
  B -->|No| D[Skip]
  C --> E[Done]
  D --> E

Example Configuration

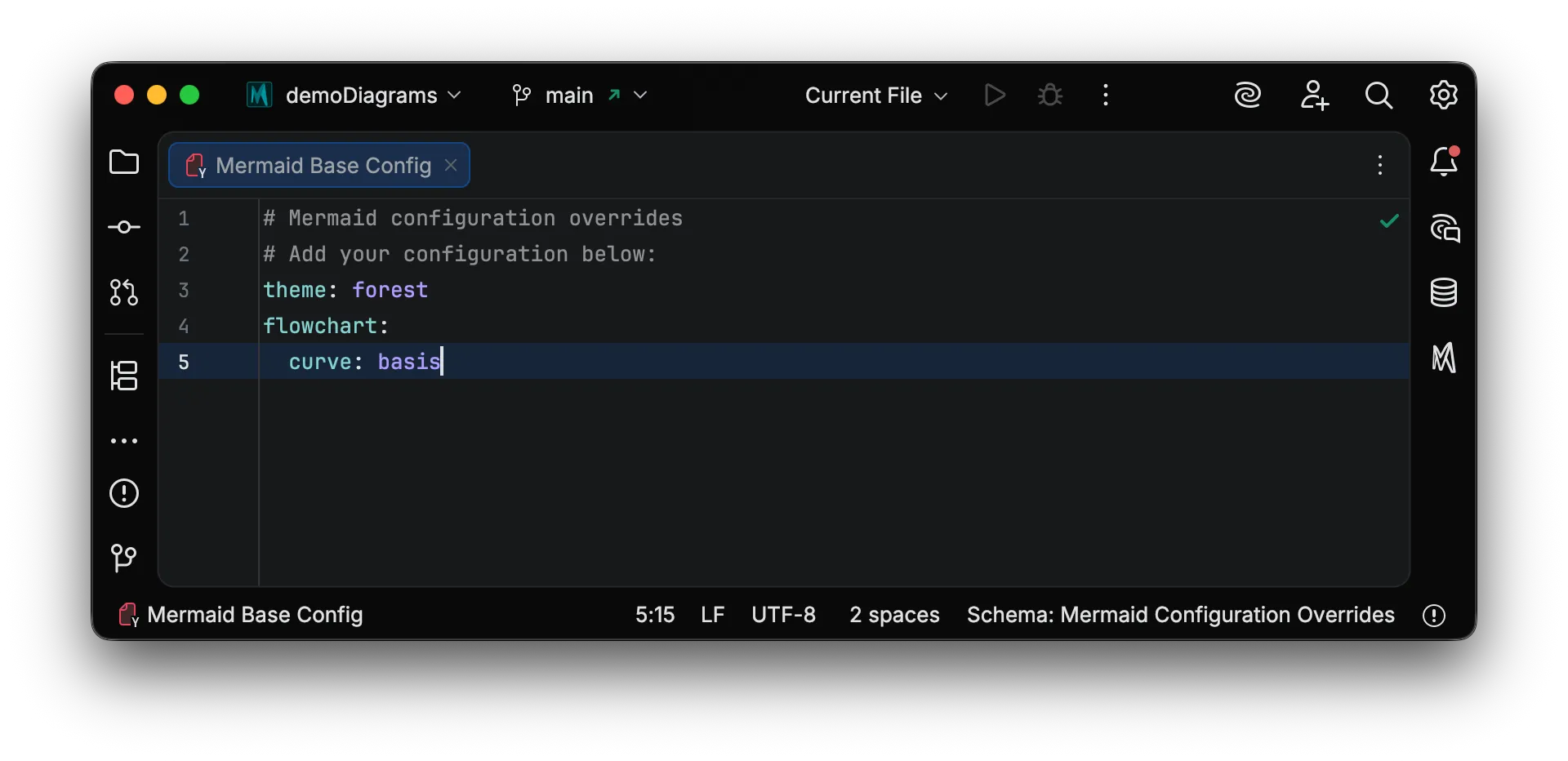

The config editor supports YAML with schema-based validation and code completion, as shown in the capture below.
